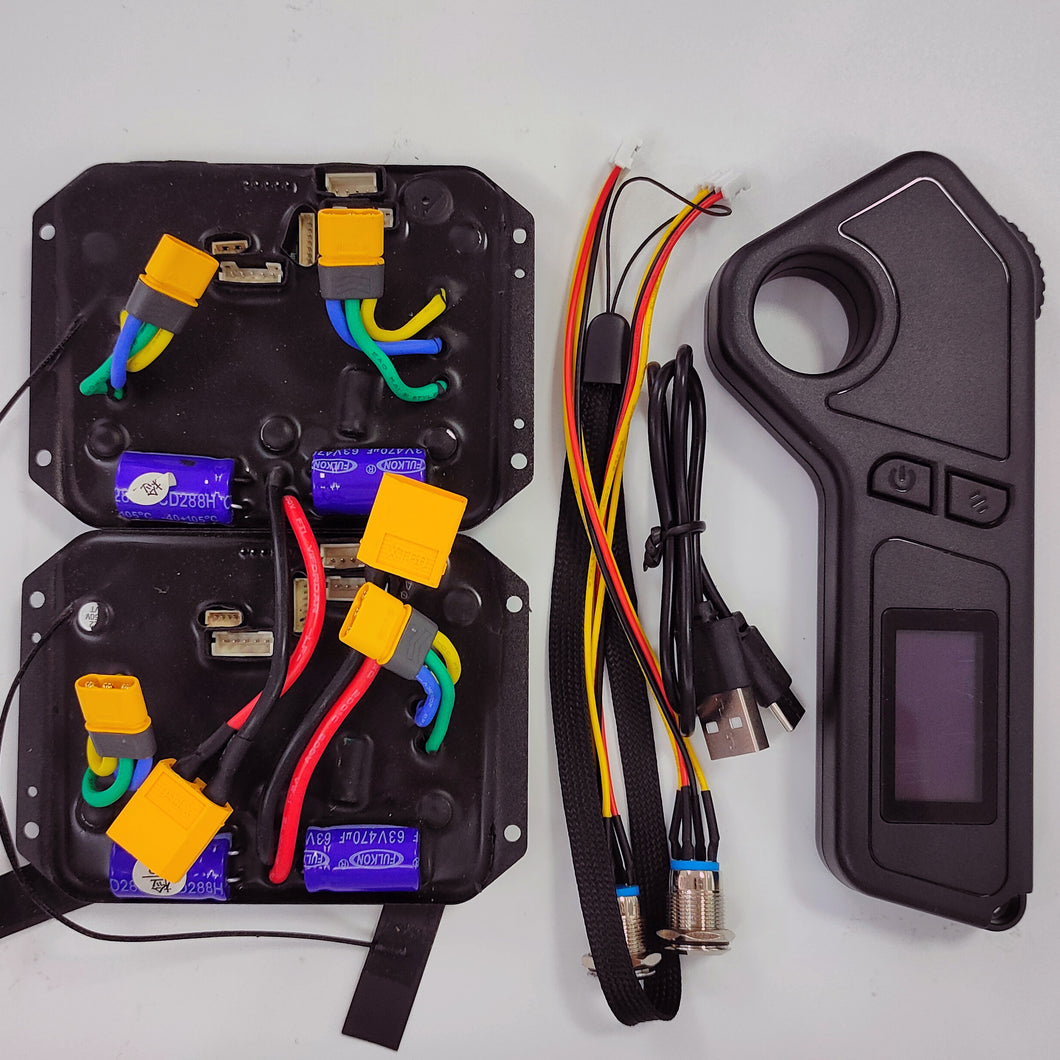

ESC Remote Kit for DIY Electric Skateboard,Dual Motor Electric Speed Controller for Longboard + Remote Controller
- latest version ESC of 2023,a sine wave scheme makes it work more stable than the other ESC and it is not easy to burn out,Voltage: 36V, 10S (30V-42V),rated current: 12*4=48A,you should use a battery has a maximum continuous discharge of 60A at least.
- high speed with high torque.with puaida’s 90 mm dual hub motors ,you can go up to 30 mph on speed mode 3 and 4,the acceleration on speed 4 is extremely strong ,you’ve gotta be really careful
- Intelligent Remote with Display：2023 new version remote, more precise throttle for Forward ,and brake ,only power button and function button to control reverse , lights , cruise control and speed/brake modes,easy to operate,it has 4 speed modes and 4 brake modes,you can easily check the current speed , speed mode, brake mode,battery level of the remote and skateboard etc on the screen.
- Multiple Protections: It features low-voltage alarm function, under-voltage and power-failure protections.low-voltage protection: 30V-33V,overvoltage protection: 46V
- compatible with 70-120 mm hub motors < 80 kv and not compatible with belt drive motors ,recommend using puaida 4Wd hub motor set
parameter for the ESC:
Voltage: 30V-42V
rated current: 12*4=48A
Locked-rotor time: 4 sec
Locked-rotor current: 5A-8A
Peak phase current: 80A-90A
quiescent dissipation: 5uA
standby current: 20mA-50mA
maximum speed of revolution:3000r/min
low-voltage protection: 30V-33V
overvoltage protection: 46V
braking current: 200A
temperature protection: 80℃-120℃
